Trischliplatz house


Kronen-/Hauptstrasse, 9400 Rorschach

Type of contract

Direct commission, 2012

Construction period



Textoris AG c/o Weber Bekleidung AG


Beat Schweizer

The project is located in the centre of Rorschach and consists of the conversion of a historic townhouse and the construction of a new residential and commercial building. The existing building is part of an ensemble of adjoining individual buildings along the main street that characterises the image of the city. The apartments of the old building were gently renovated and adapted to contemporary needs through precise interventions in plan. More

On Trischliplatz there are numerous large-scale residential and commercial buildings of different periods. The new building responds to its heterogeneous surroundings by orienting itself to the existing street lines and building heights. Its main facades face Poststrasse and Kronenstrasse. On Kronenstrasse, it connects to the old building in the form of a patio.
The ground floor houses retail spaces of various sizes. The first floor contains commercial space and an apartment, while the upper floors are occupied by spacious apartments. The almost square plan of the building is reflected in the concept of the apartment plans. These are characterised by the idea of a structural core, in which the access and ancillary rooms of the apartments are located. The living and outdoor spaces as well as the rooms develop along the facade. All the apartments are triple aspect.
The expression of the building is characterised by a structural facade of etched concrete elements. Their three-dimensional form creates a subtle play of shadows in the window reveals of the otherwise calm facade. Textile drop-arm blinds contrast with the mural appearance of the building. To support the uniform effect of the facade, the loggias are fitted with sliding windows, which allows them to be used as seasonal rooms.

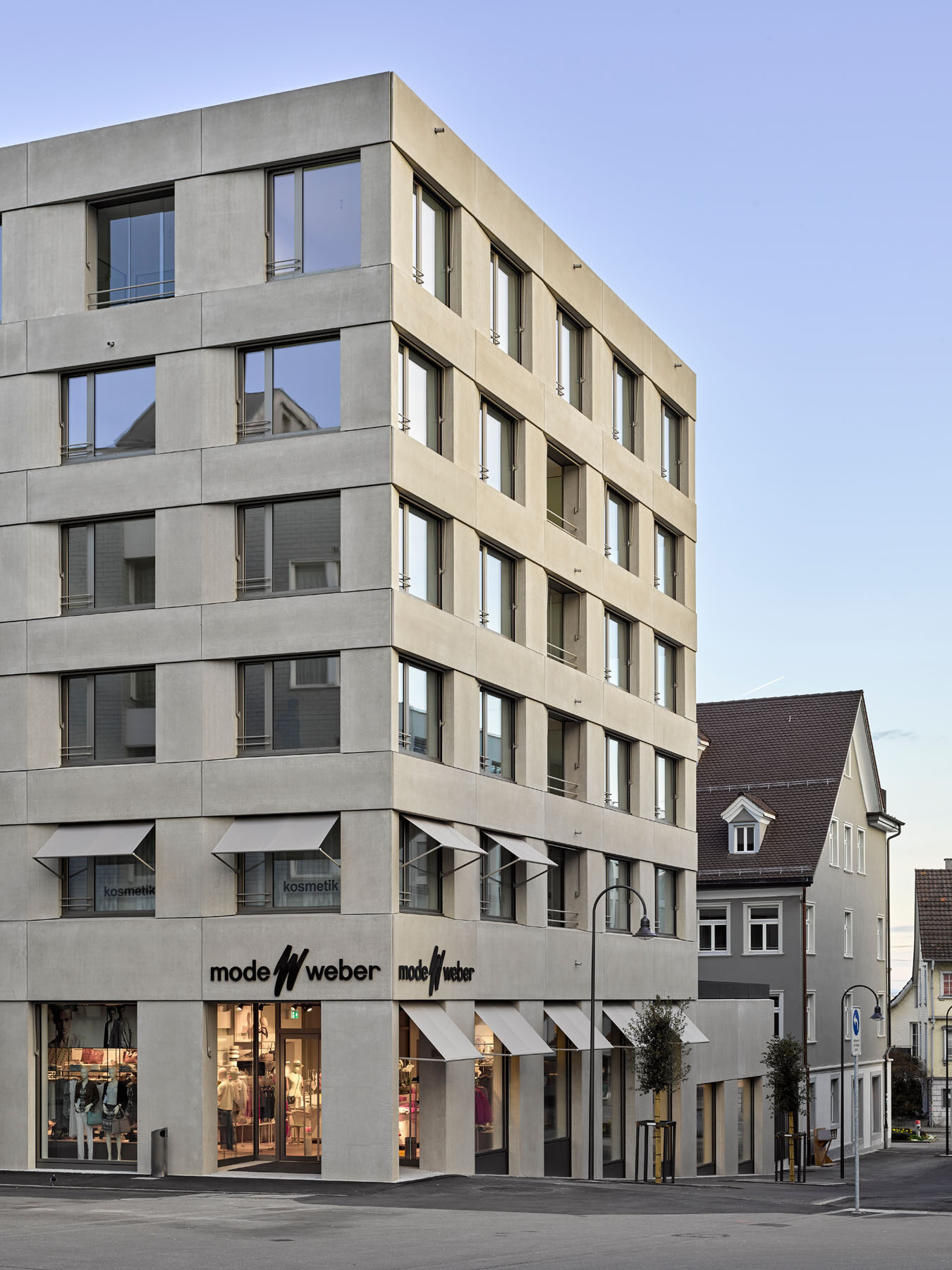

The new and renovated buildings on Kronenstrasse

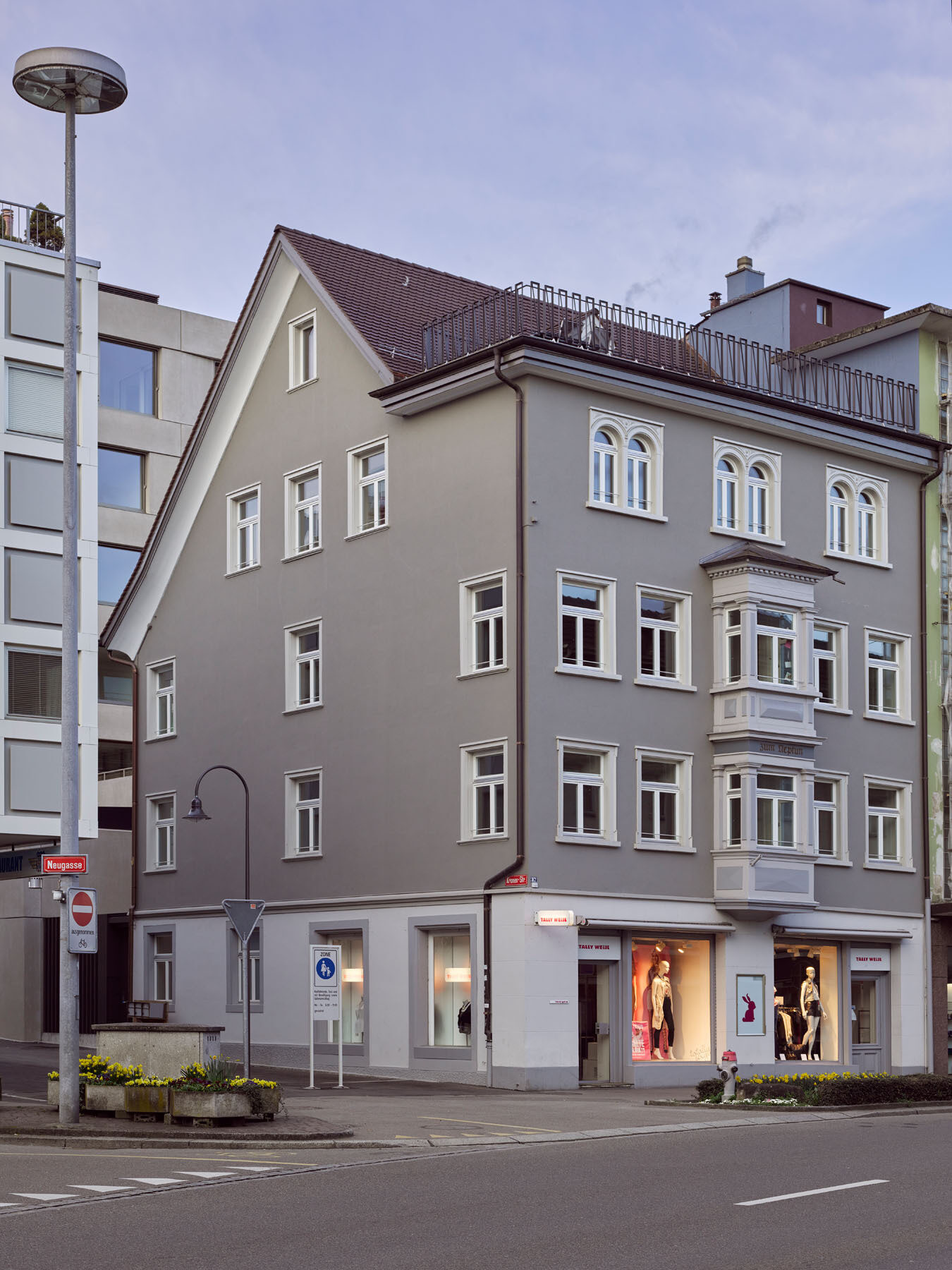

The renovated building on Hauptstrasse

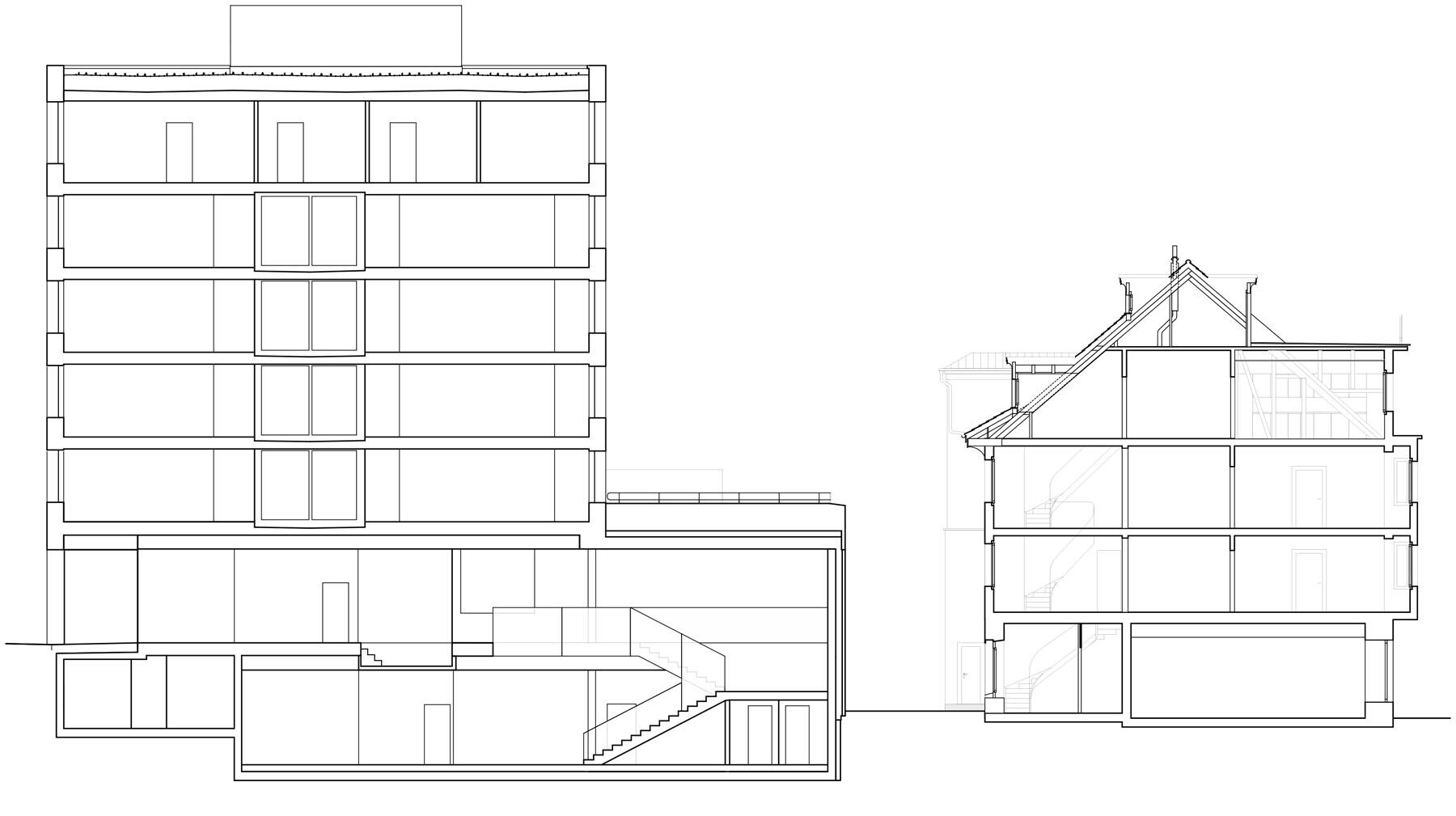

Section through both buildings

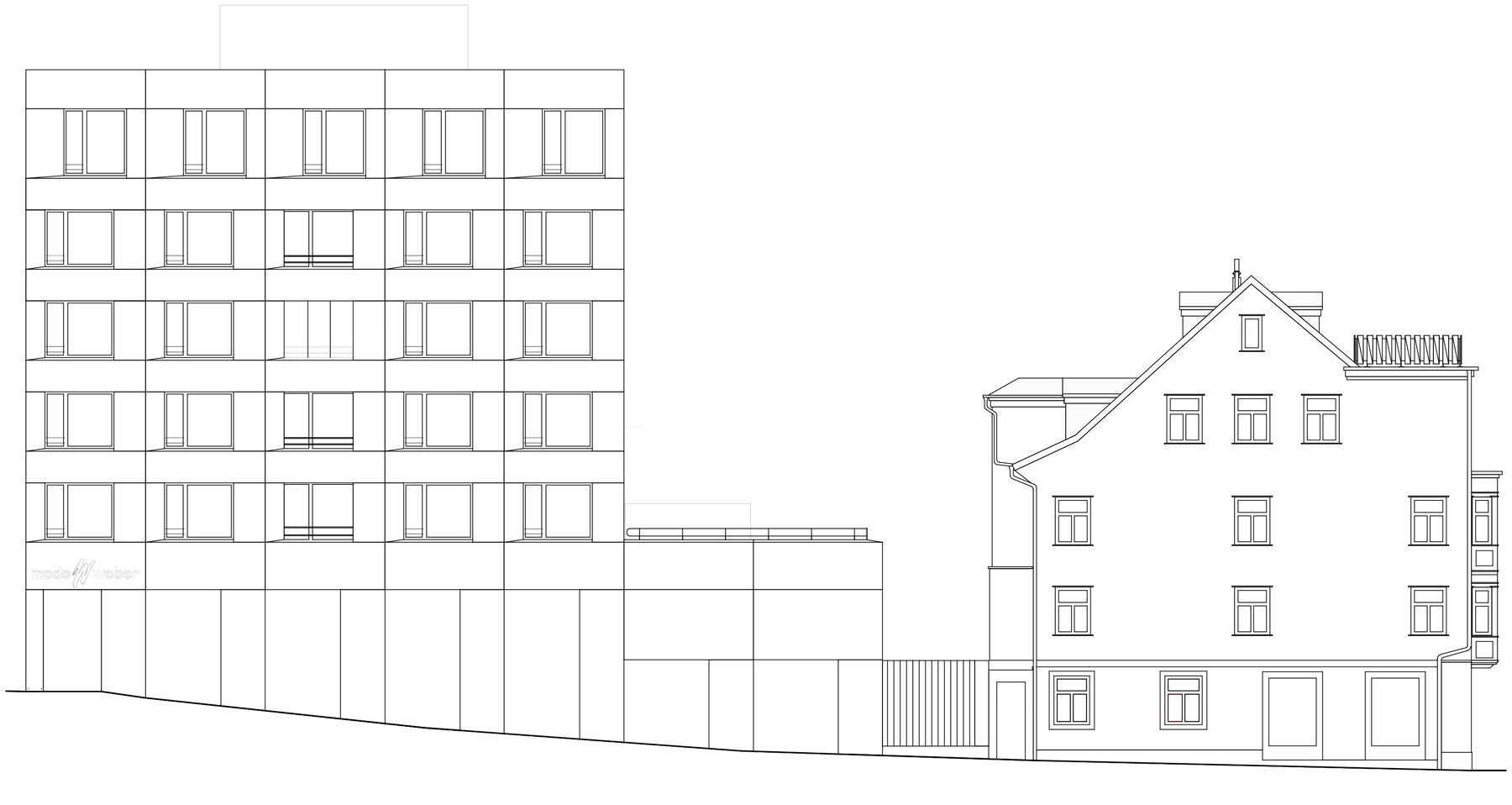

East elevation

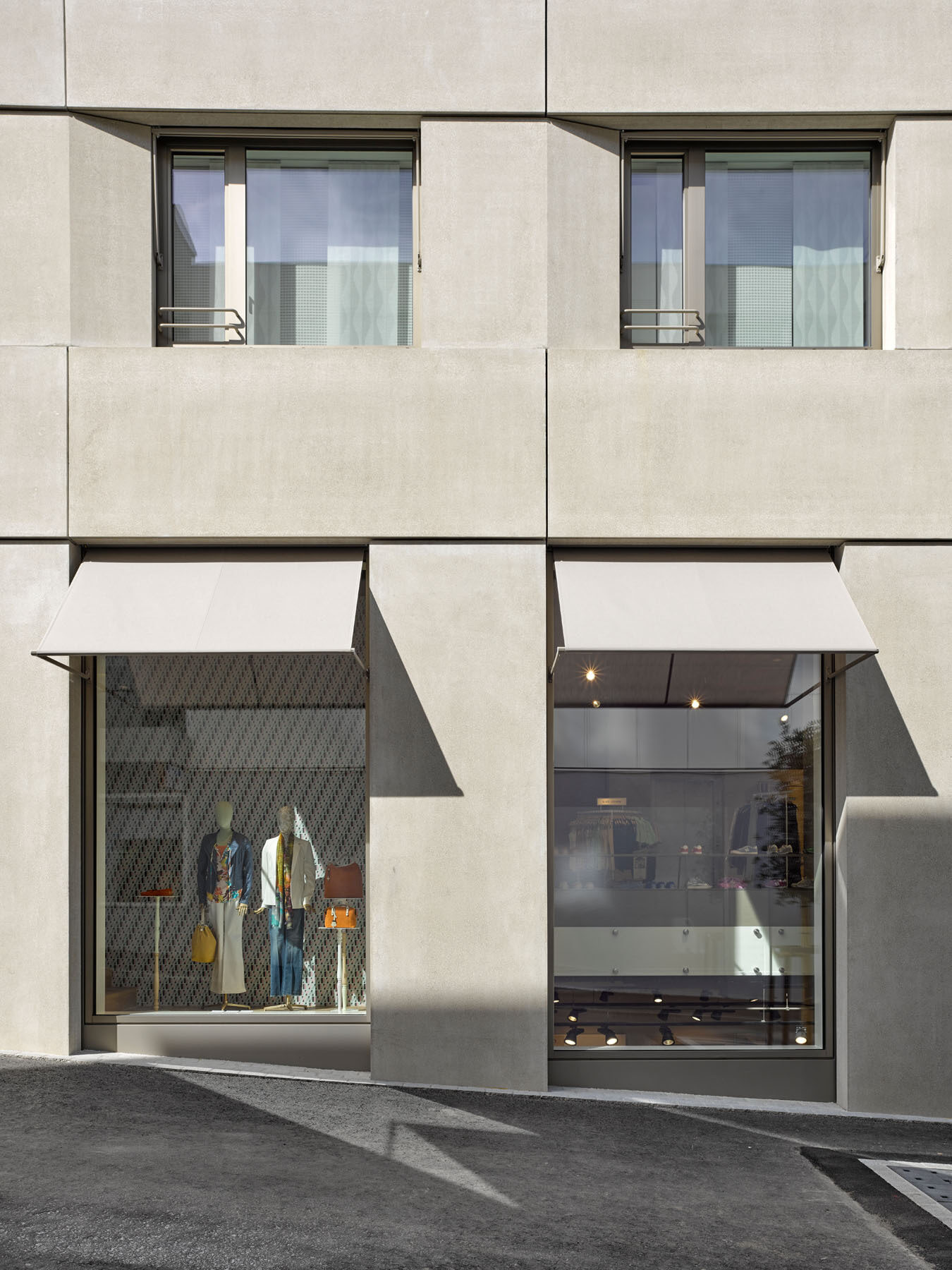

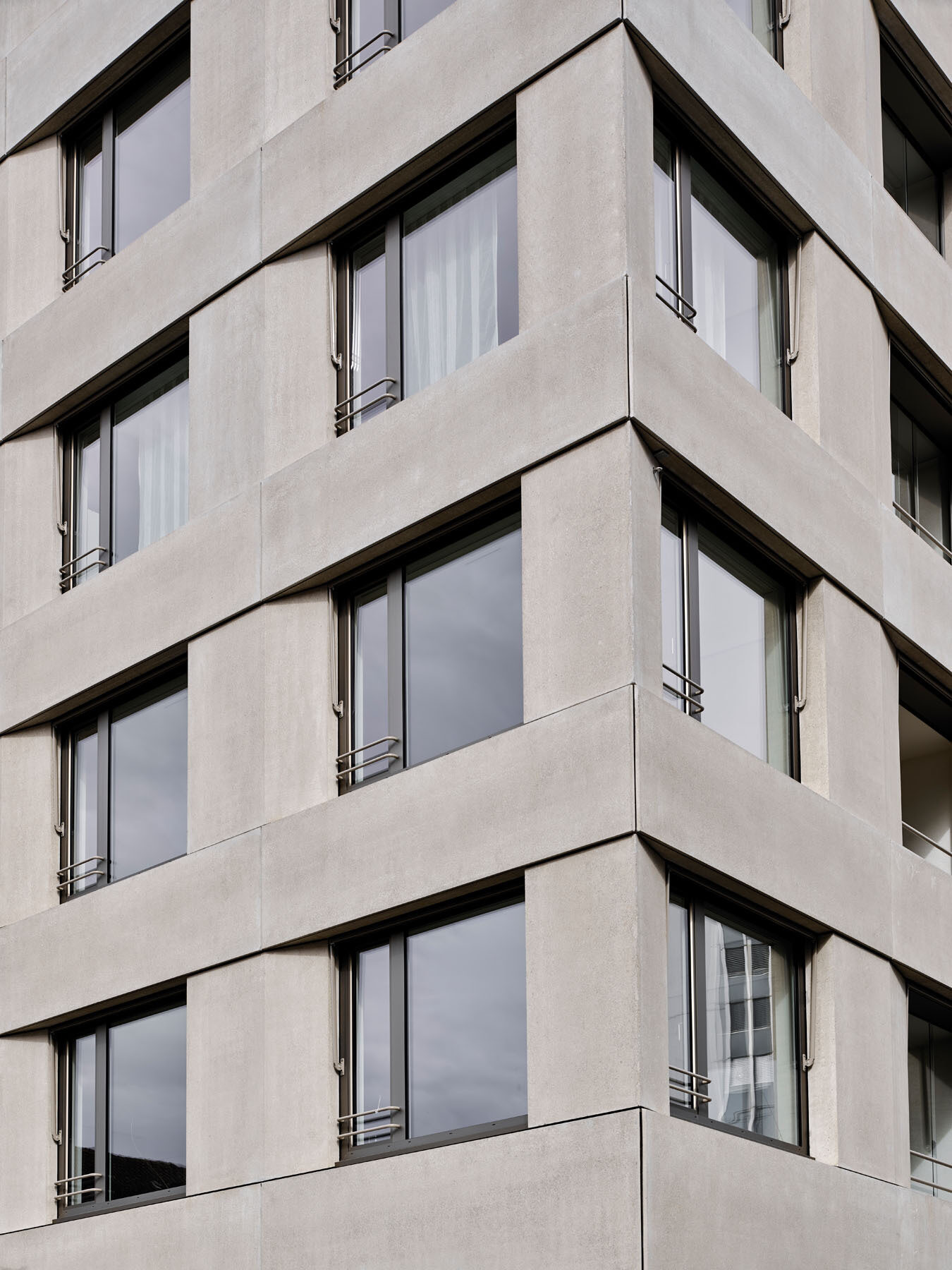

Facade detail

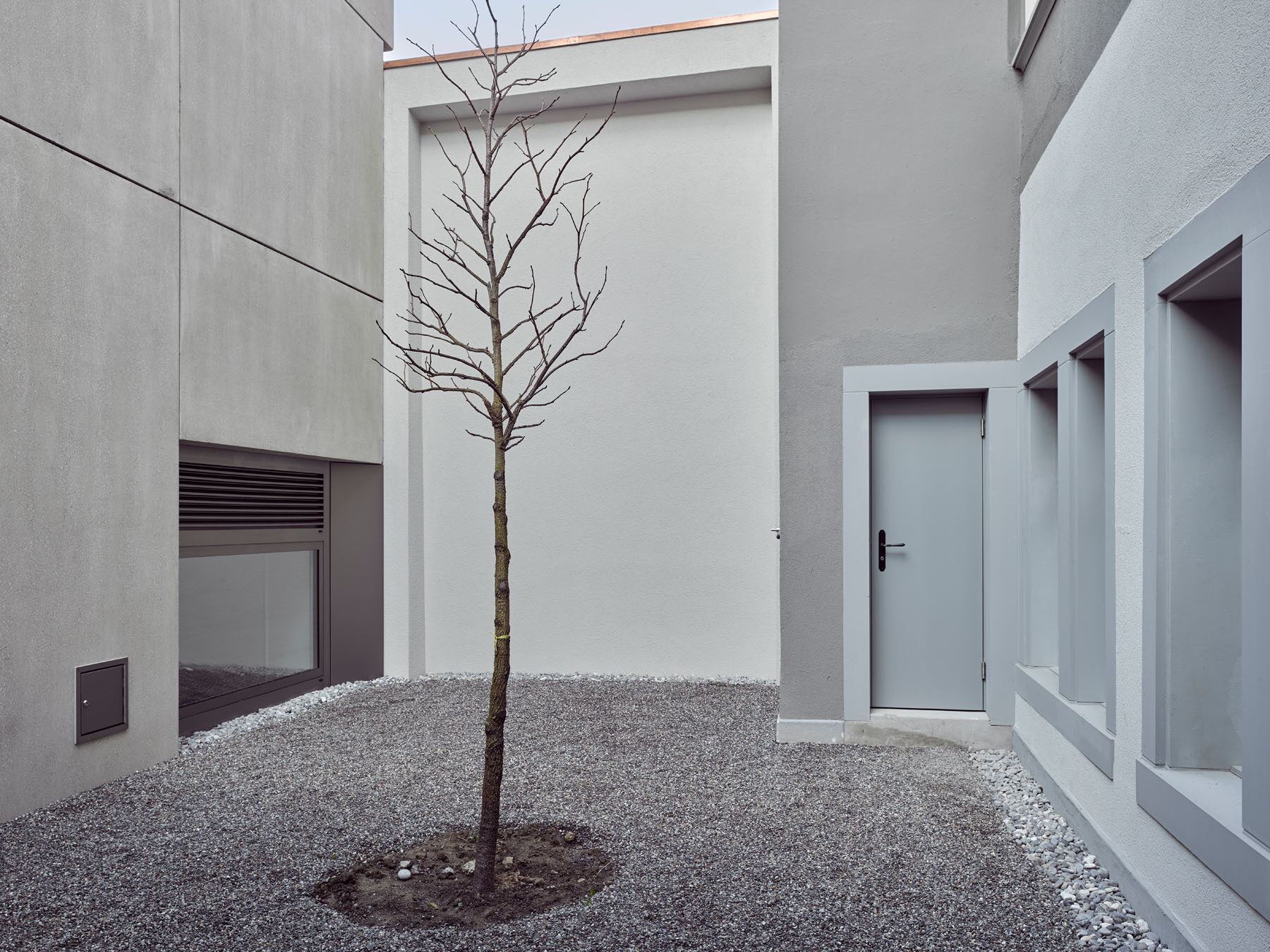

The space between the buildings
Retail spaces on the ground floor
a sequence of spaces along the facade

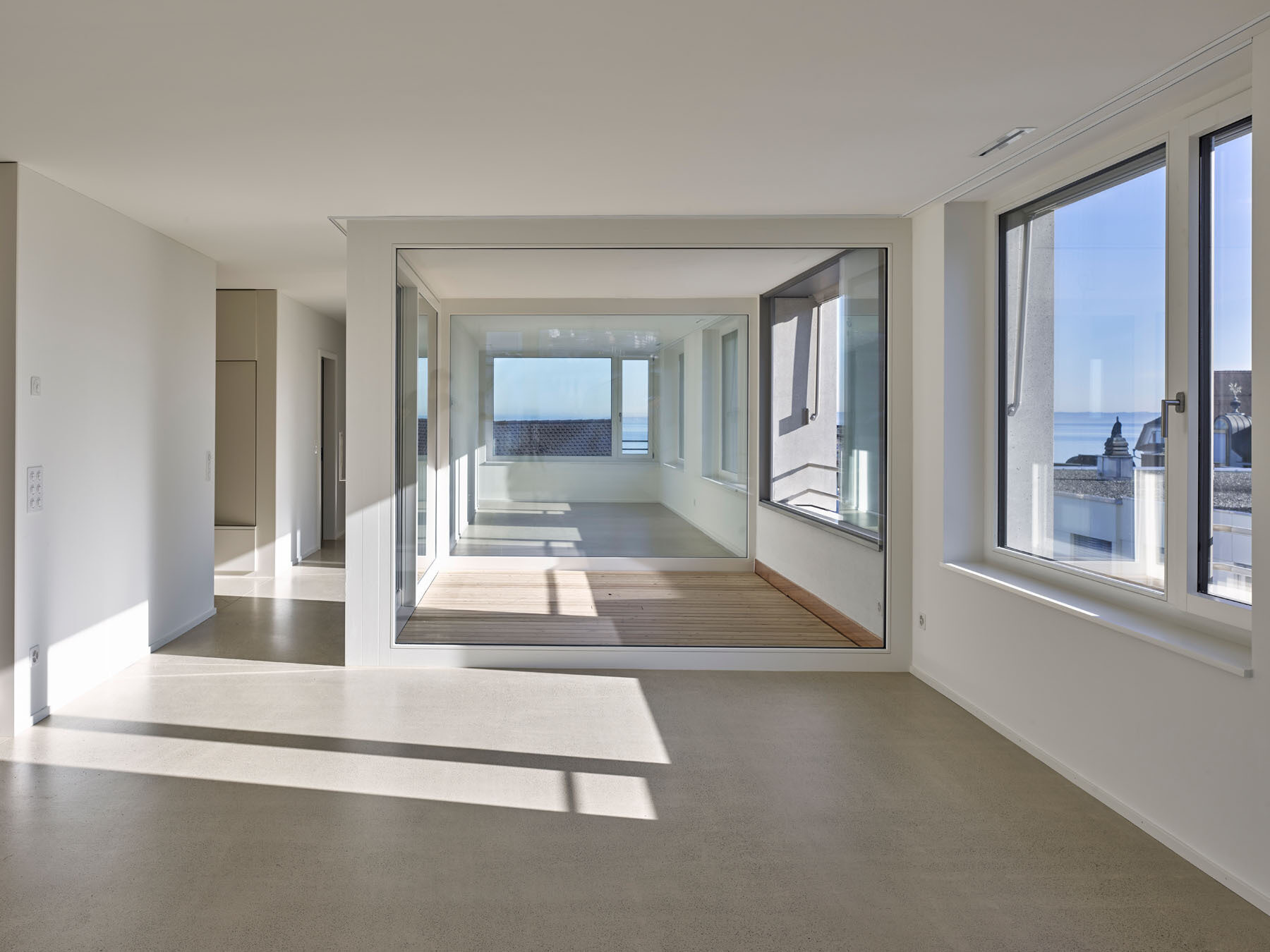

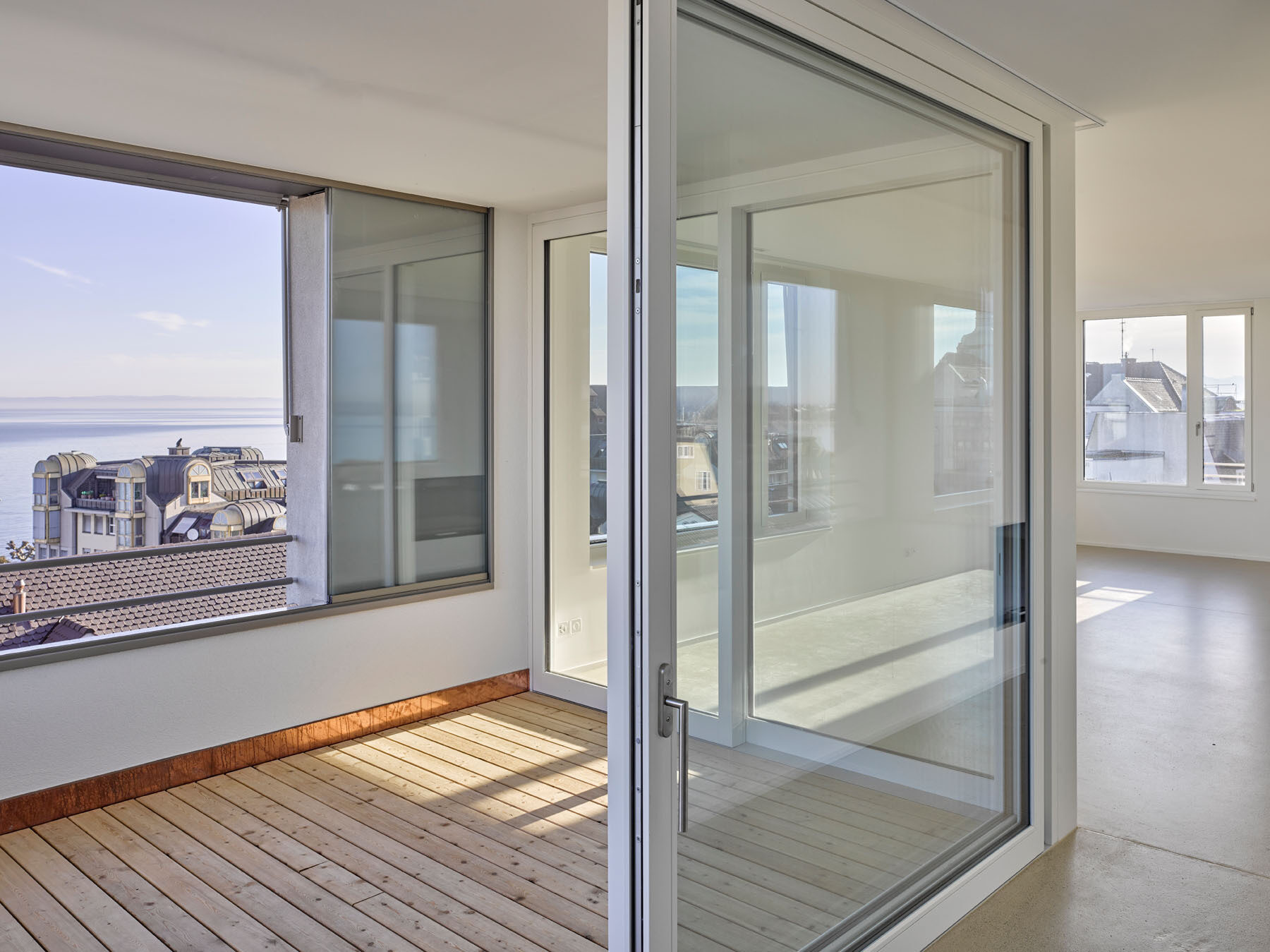

View of the loggia, towards the lake

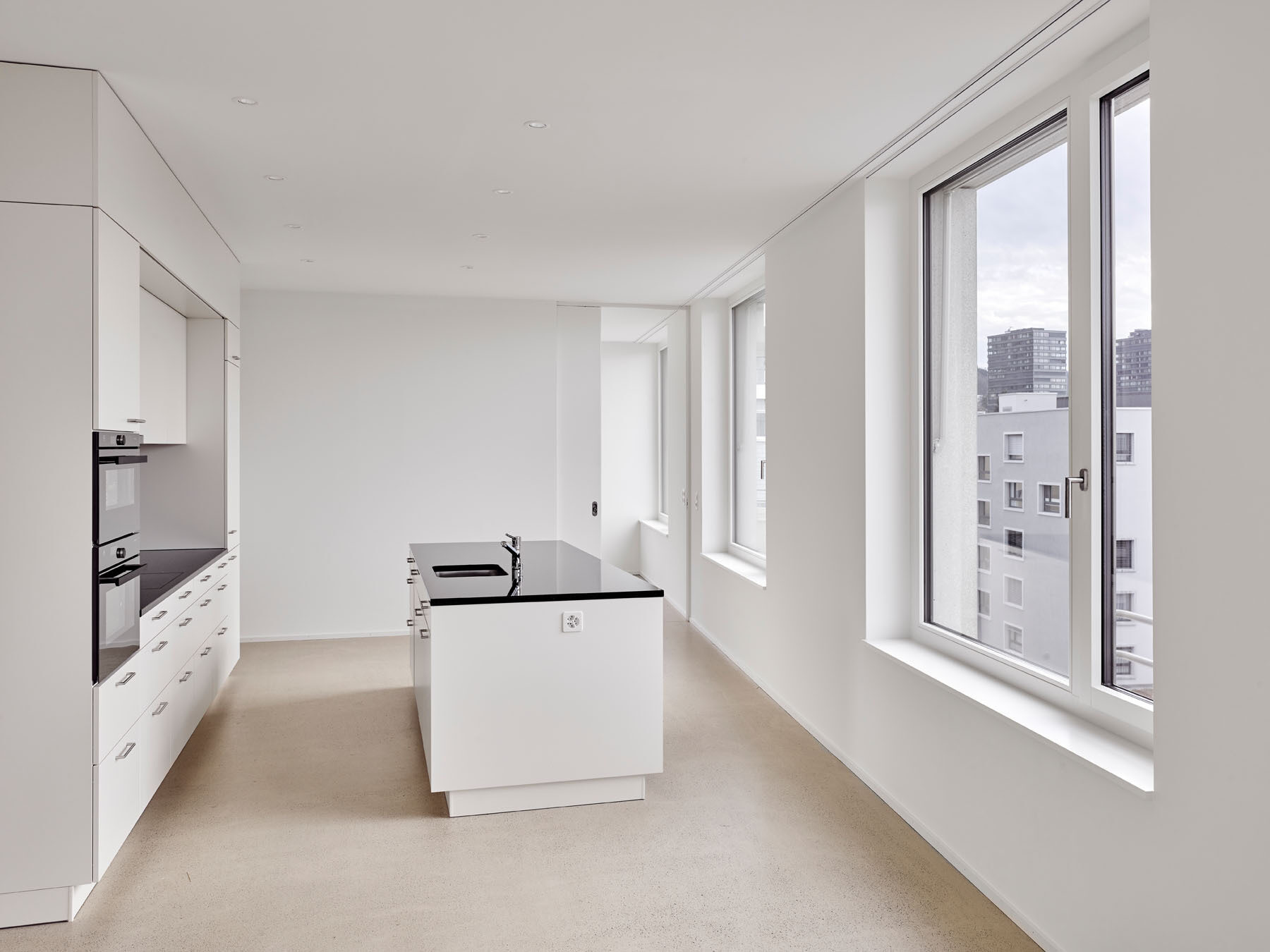

A kitchen in the new building

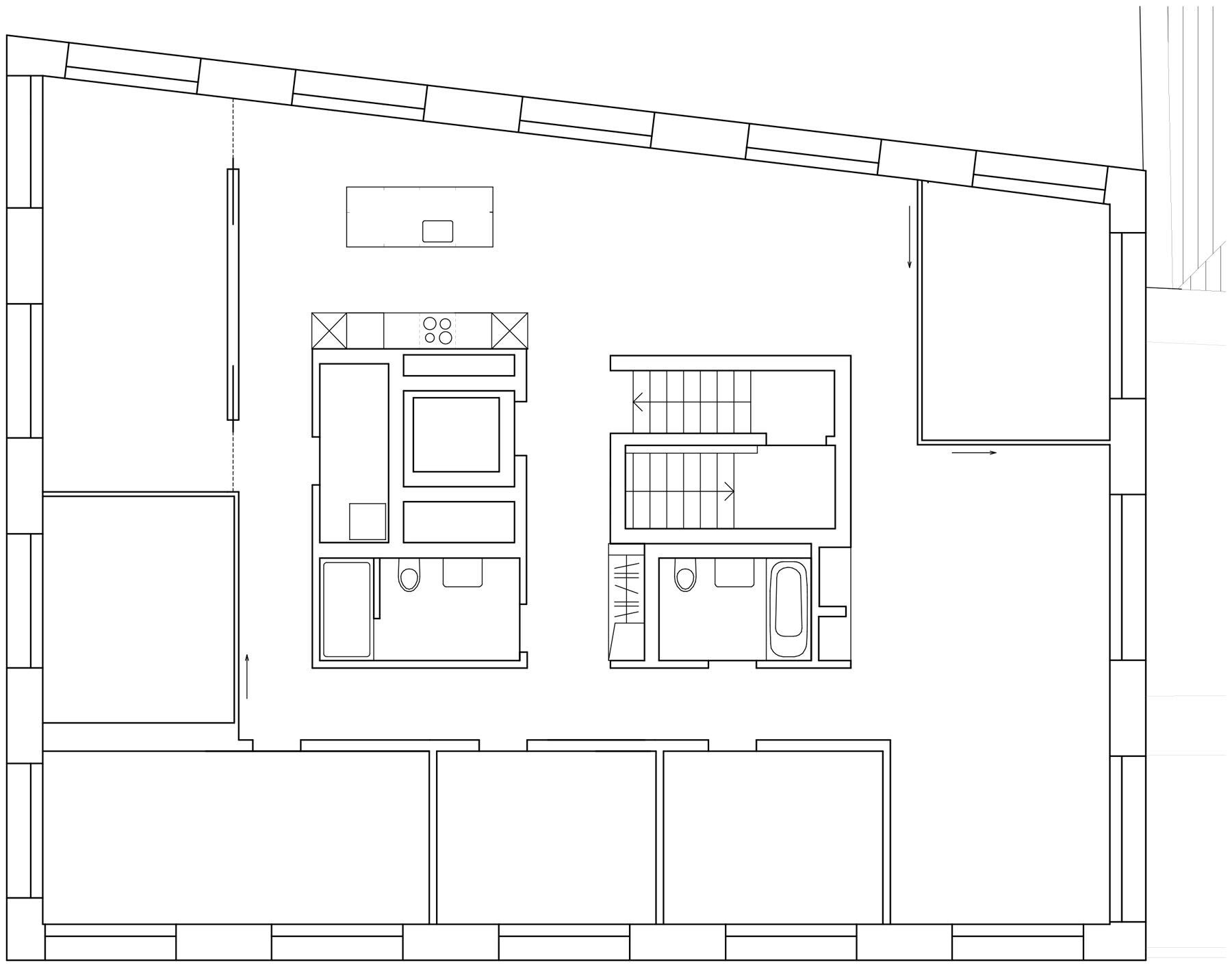

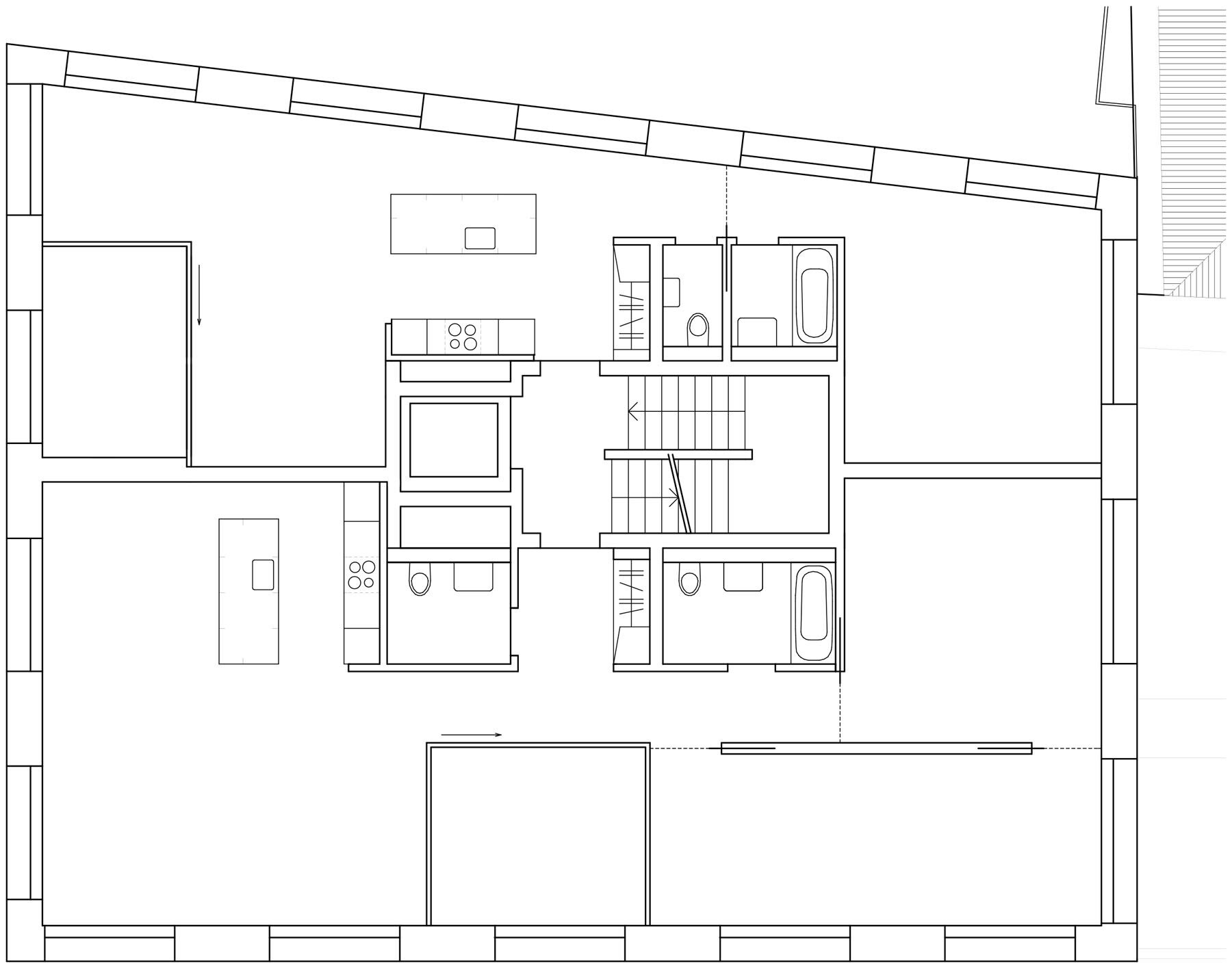

Upper floors of the new building
Attic storey of the new building

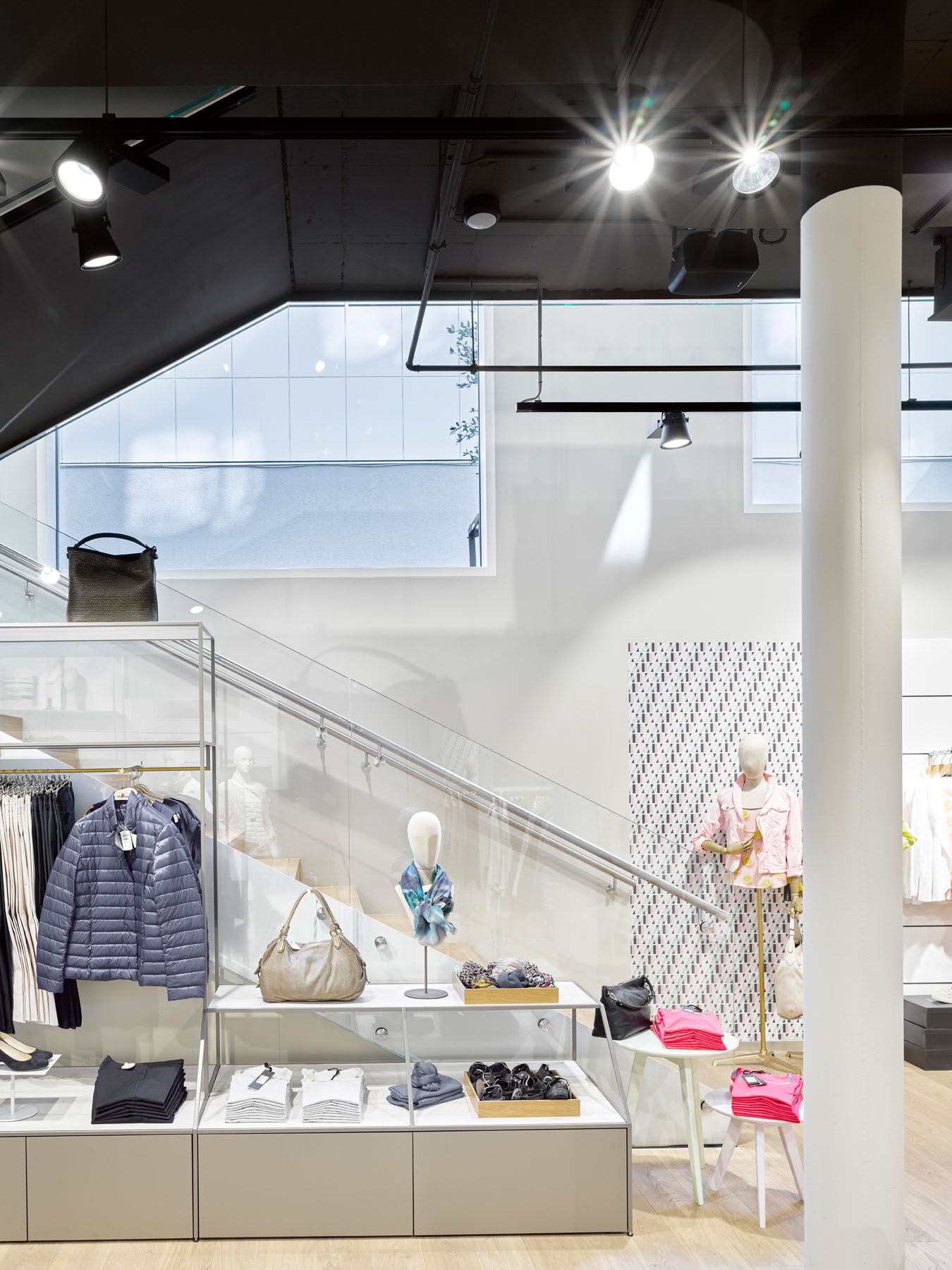

A retail space

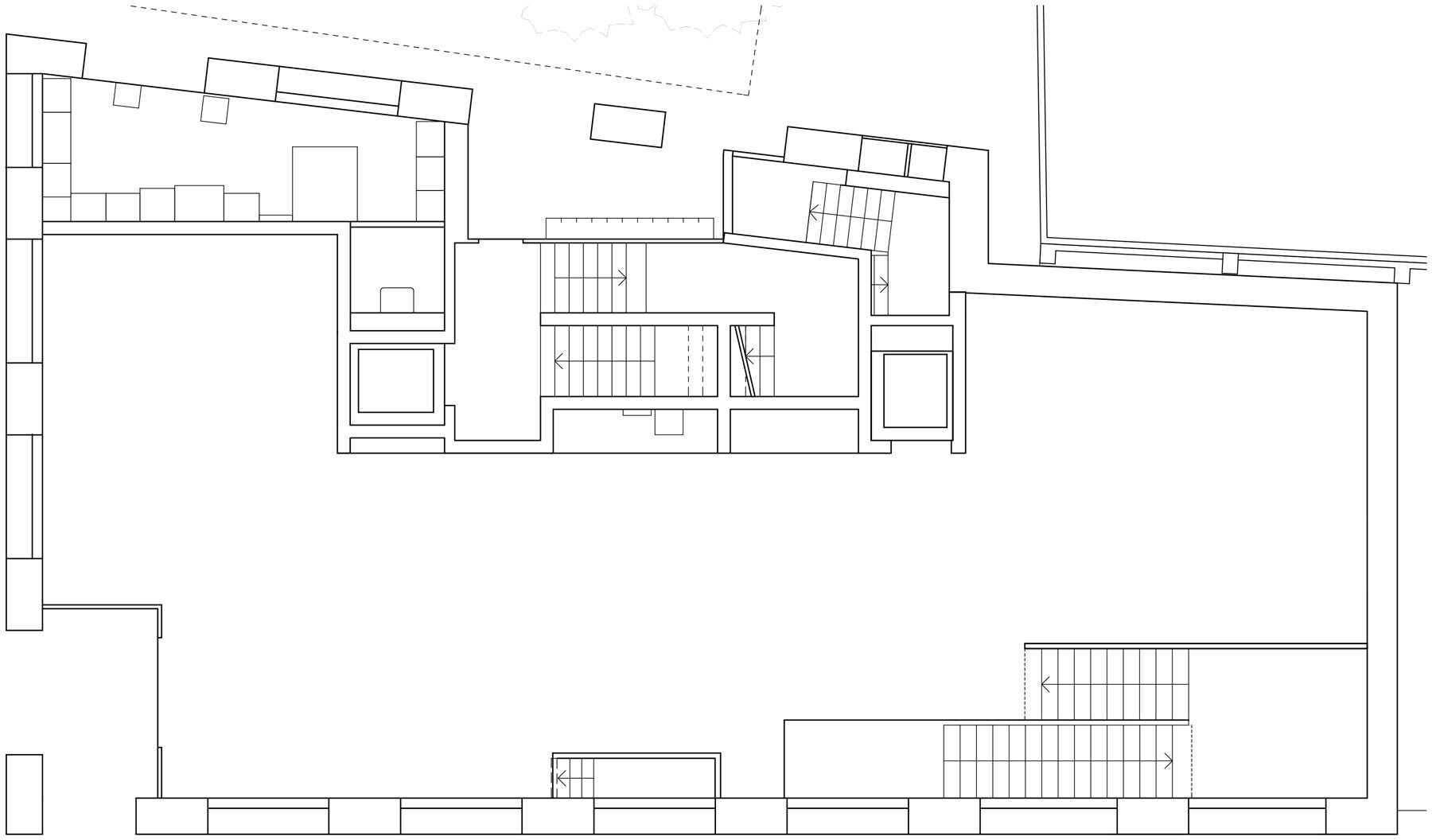

Floor plan of retail space

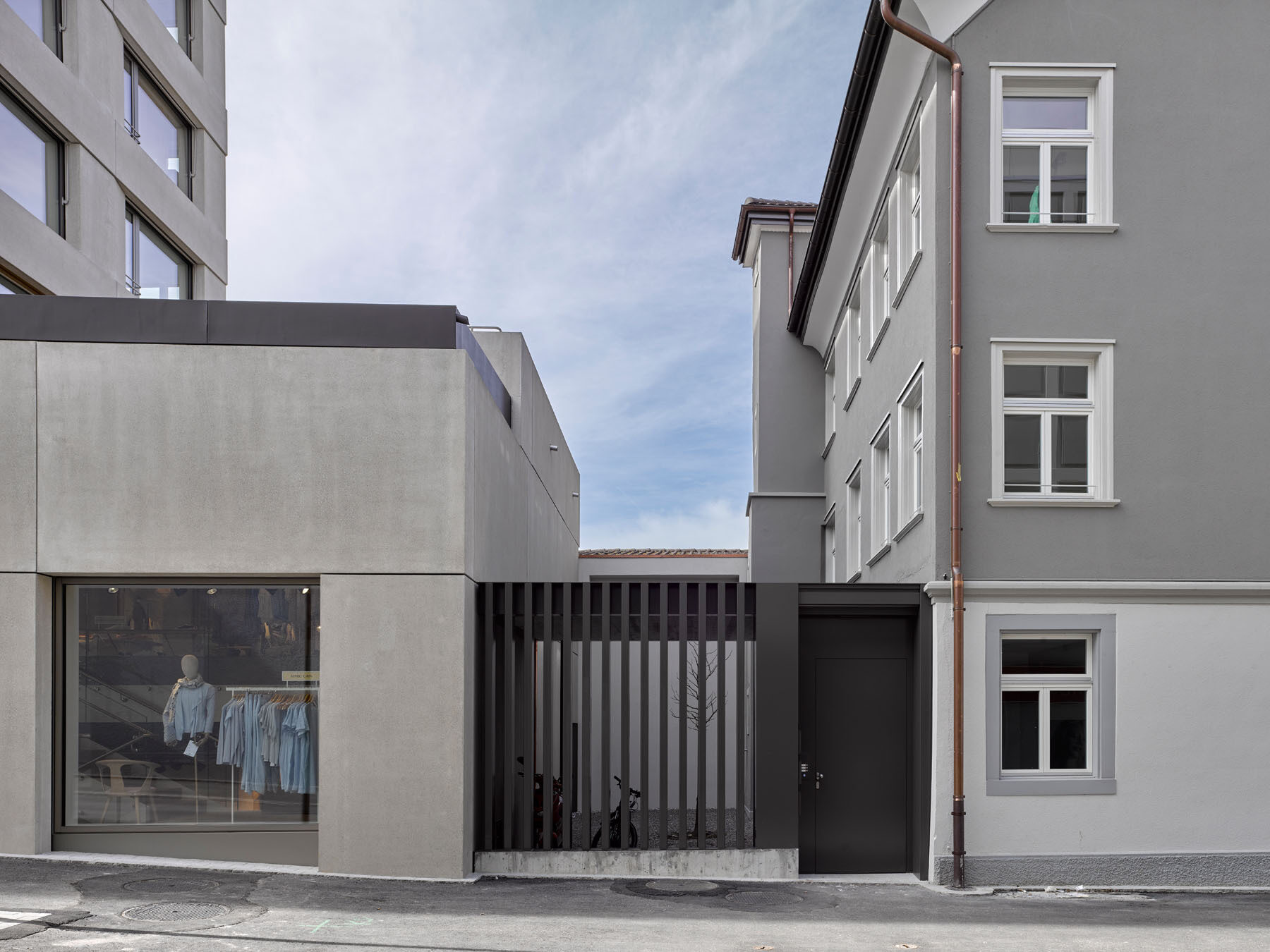

The old and new buildings side by side

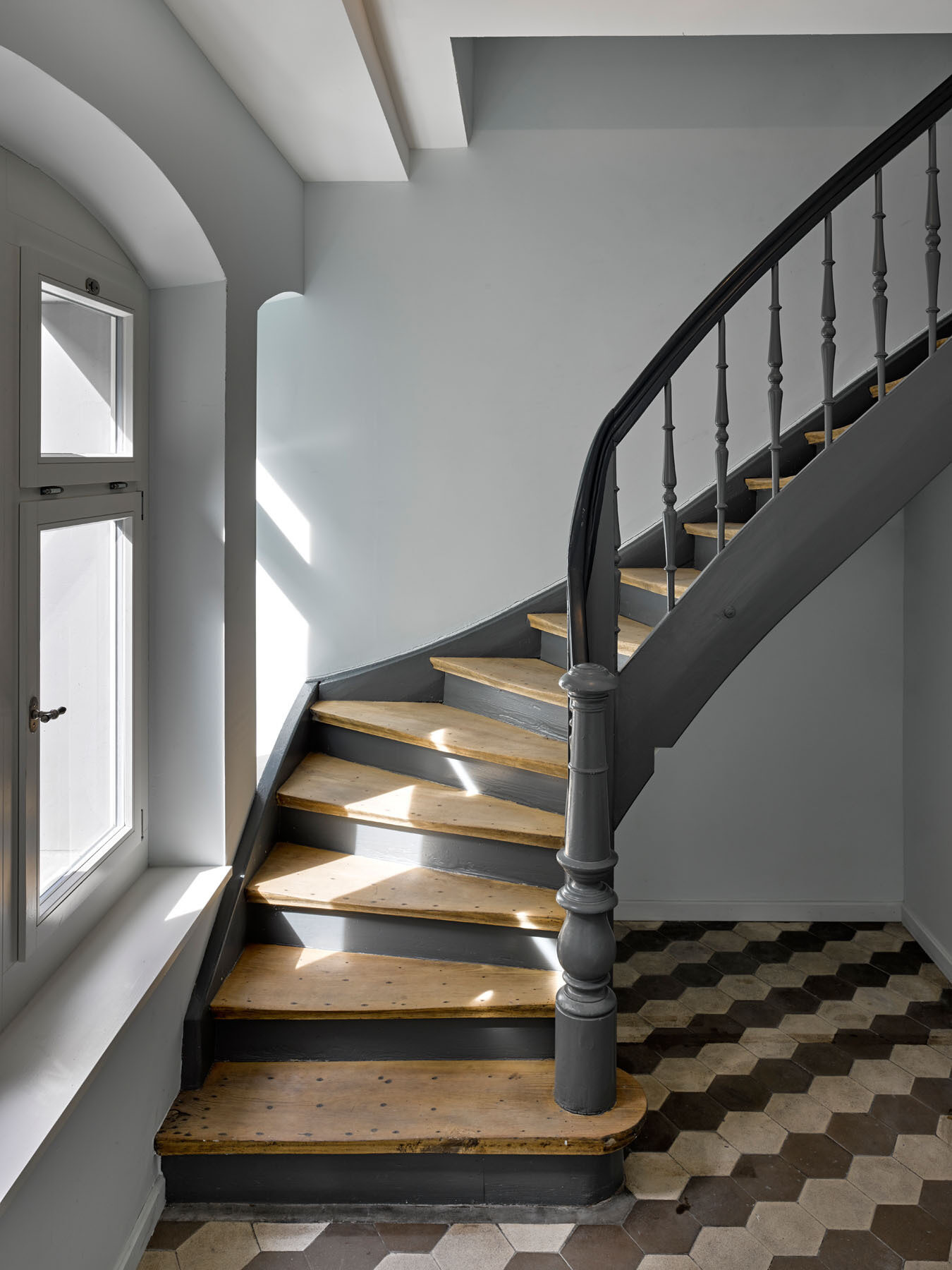

A stairwell in the old building

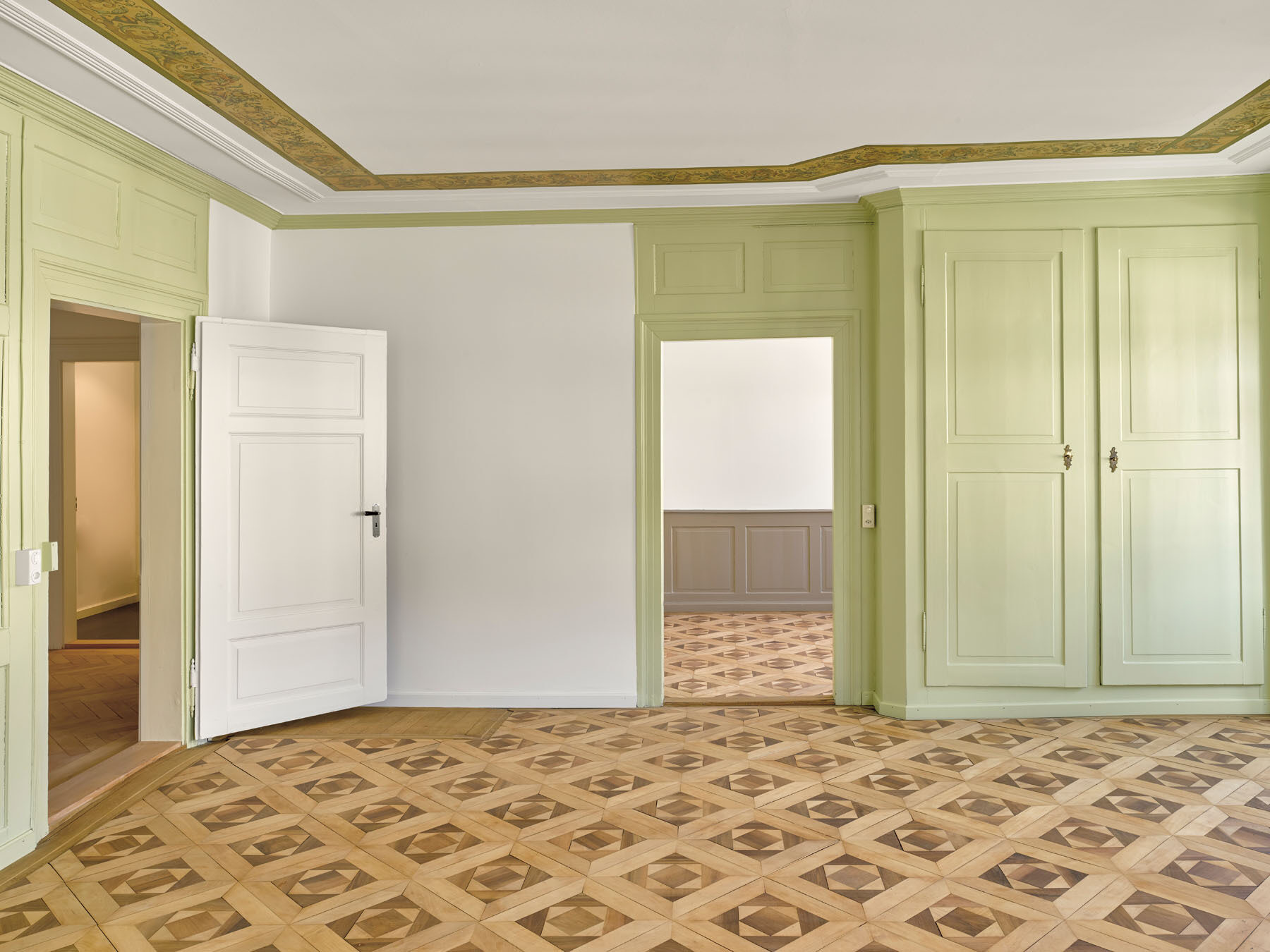

A living room in the old building

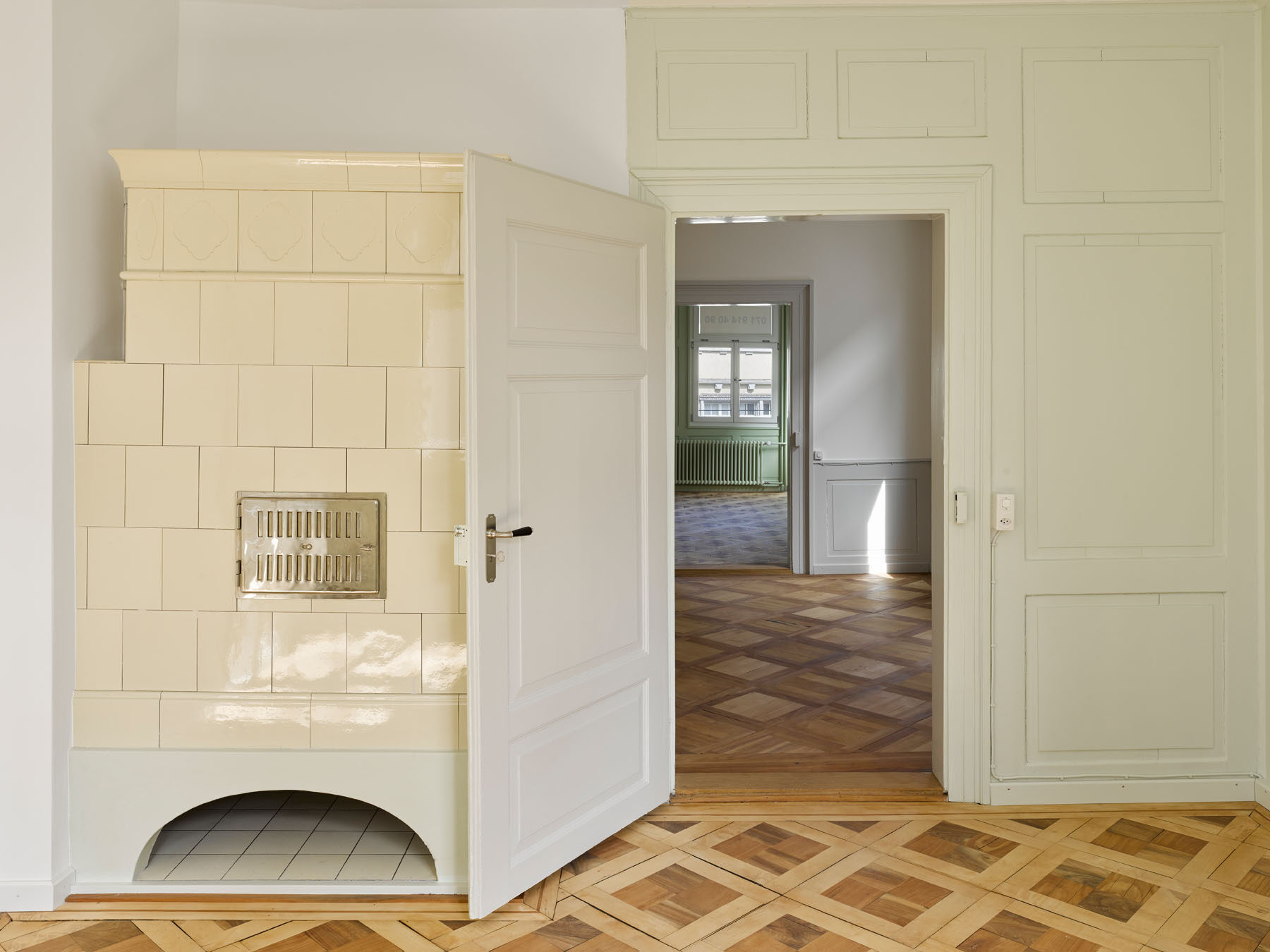

A classical sequence of openings in the old building

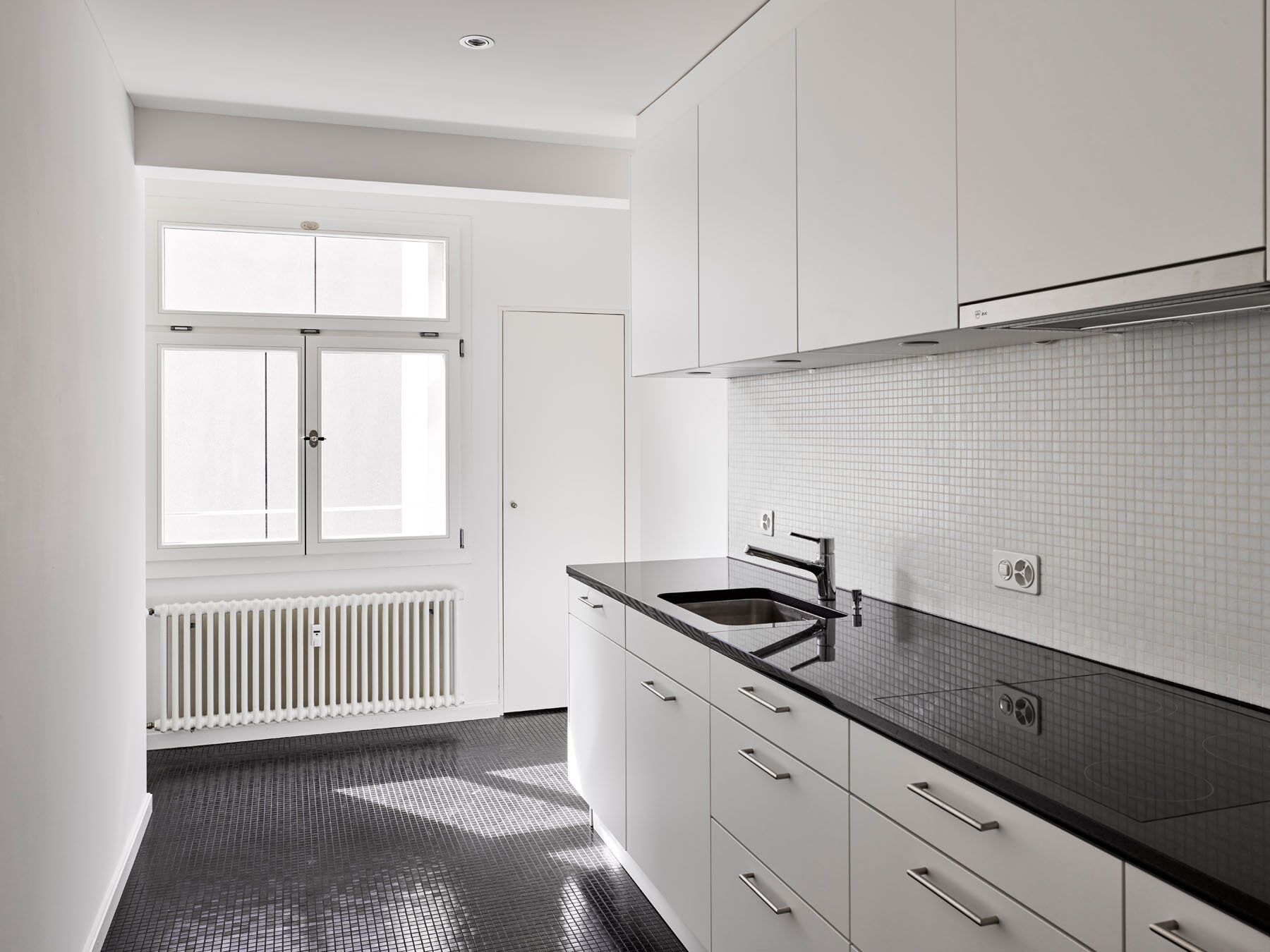

A kitchen in the old building

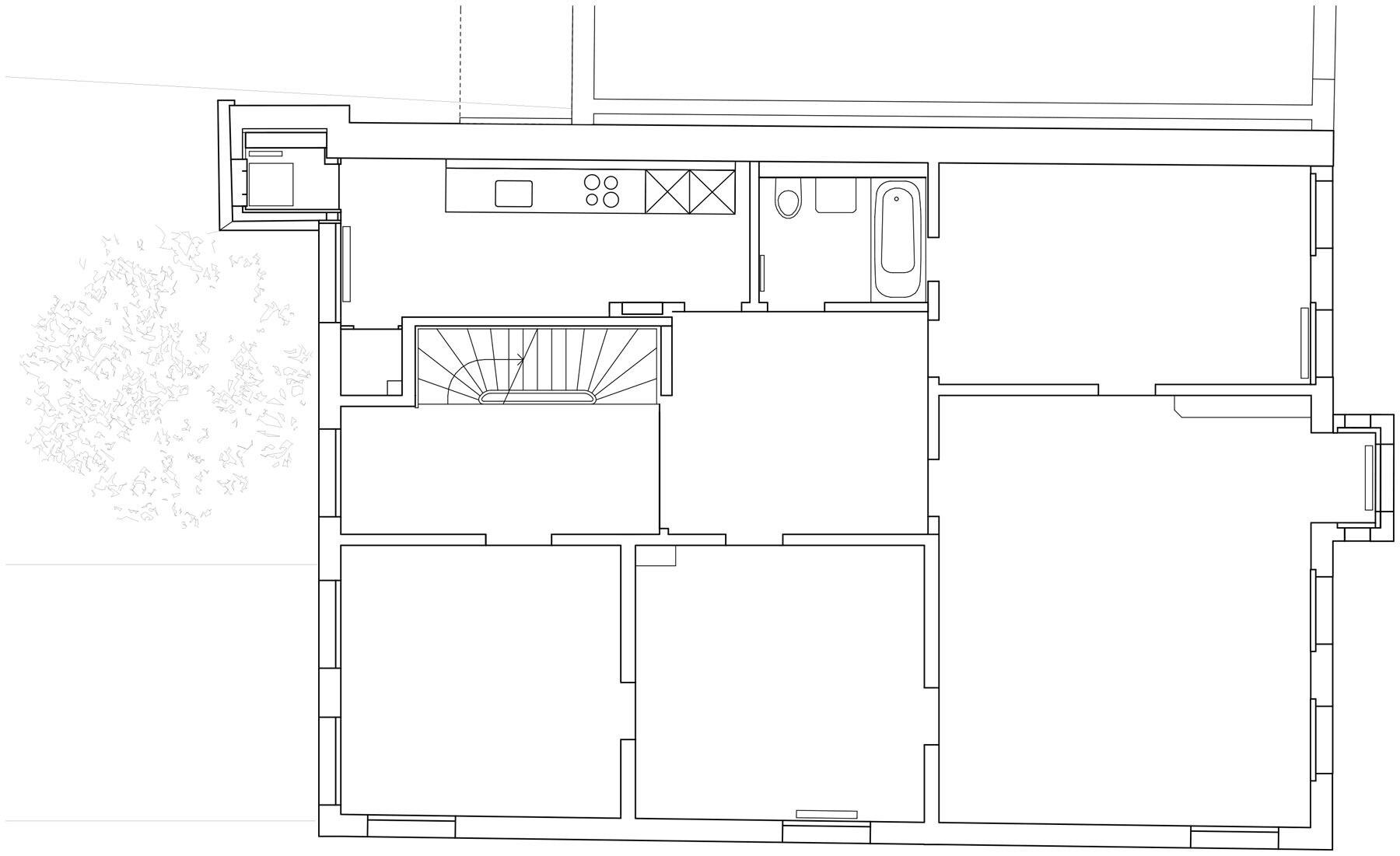

Typical floor plan in the old building

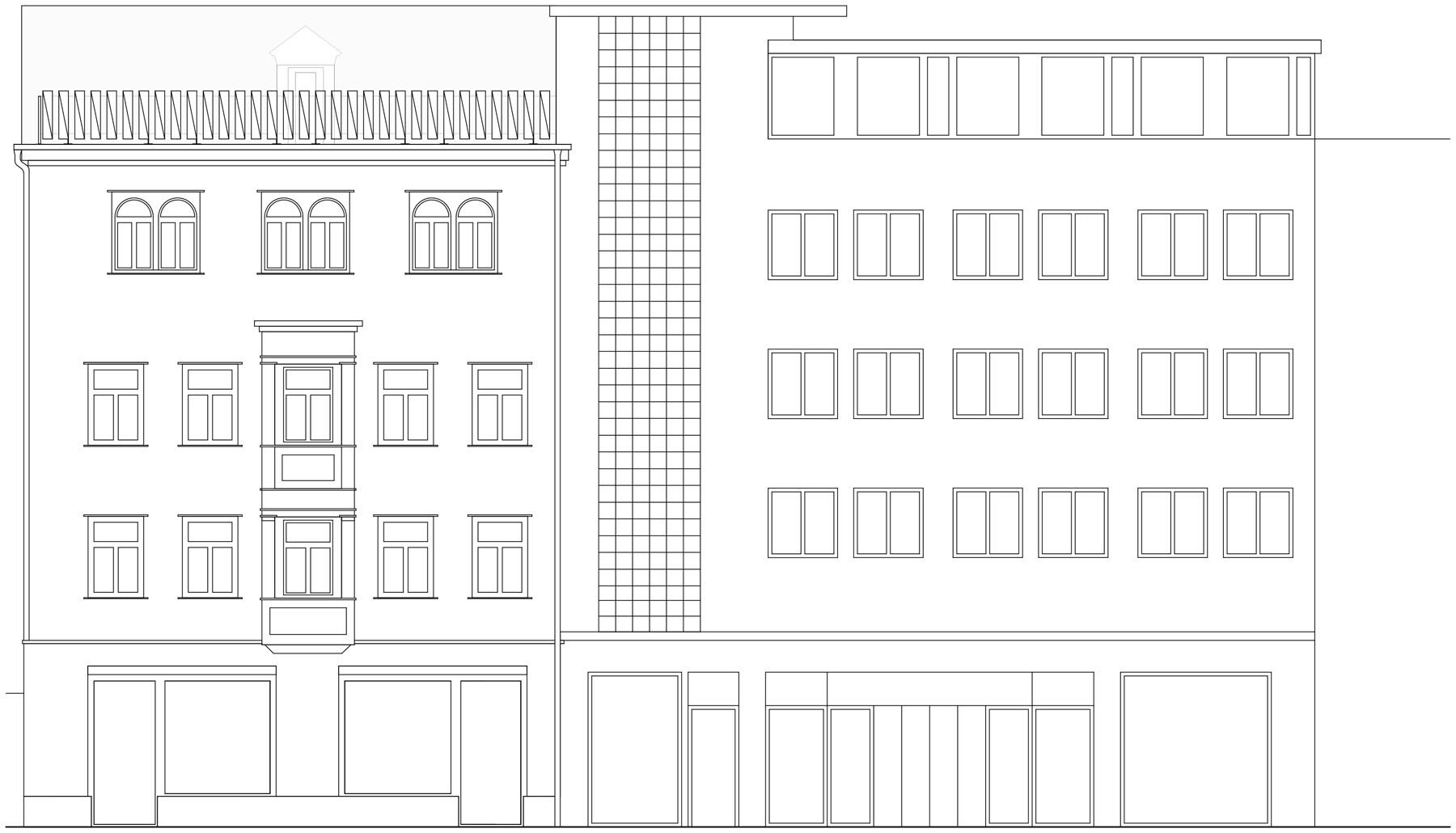

North elevation

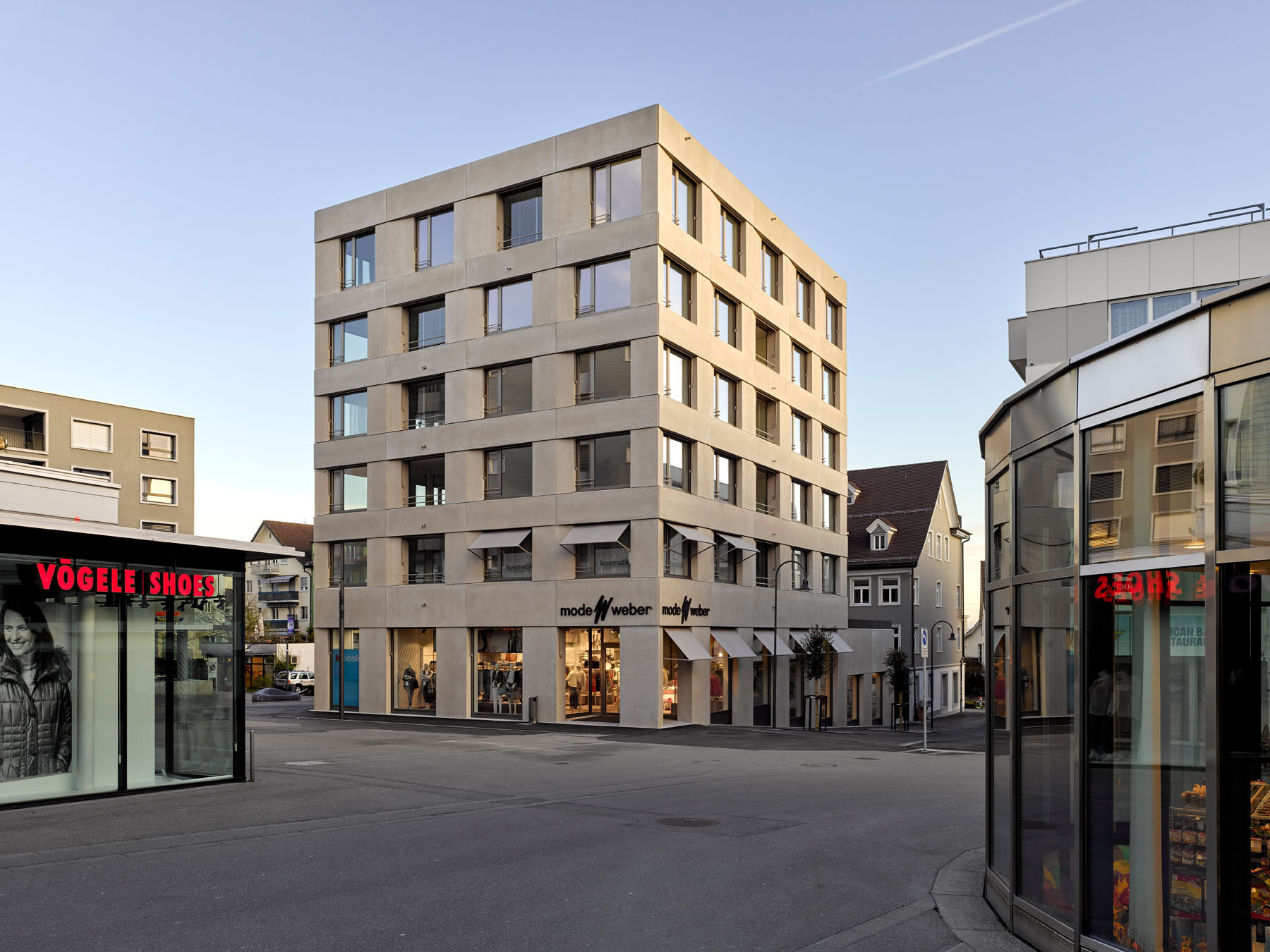

The new building on Trischliplatz
